£64.90
16-pole motor rotor for the Bafang BBS02 750W (also fits BBS01). Not interchangeable with the BBSHD’s 8-pole rotor. Replaces a rotor showing whine, grinding, or magnets working loose from heat and high RPM.
For any order above £19.90 shipping is free of charge.
You have the right to return your orders within 30 days.
12 months warranty from date of purchase.
Rotating magnet assembly · 16-pole, BBS02-specific · Not interchangeable with BBSHD’s 8-pole rotor

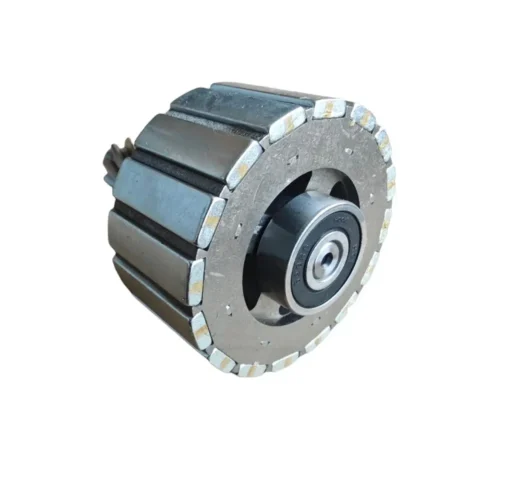

The rotor is the rotating magnet assembly inside the motor — a shaft-mounted ring carrying permanent magnets that spins inside the stator, the stationary copper-wound part, to generate the rotating magnetic field that actually drives the motor. It also carries the magnetic timing ring the motor’s internal Hall sensors read to determine rotor position for commutation, which is a separate function from the external PAS cadence sensor on your crank.
Motor whine or resonance noise is a common sign of magnets working loose on the rotor body. High heat from sustained hard riding softens the adhesive bonding the magnets in place, and high RPM adds shear force that can eventually fling a loose magnet free — a gradual wear mechanism rather than a sudden one. Pulsating clanking or grinding noise, or the motor working with no resistance in one direction, points at rotor or bearing-surface wear. And if your bike works fine in throttle/walk mode but assist fails or cuts out while actually pedalling, that can indicate a damaged magnetic timing ring on the rotor rather than a PAS sensor fault — worth ruling out before you buy a sensor instead.
Fits the BBS02 750W UART kit and BBS02B CAN-BUS kit, and pairs with the BBS02 UART controller or BBS02 CAN-BUS controller. If you’re replacing other internal wear parts on the same motor, the BBS01/BBS02 clutch is the part most commonly serviced alongside it. Not confident tearing the motor down yourself? Our full Bafang service handles the full rebuild.
Every Rotor purchased from All4eBikes is covered by a 12-month warranty against manufacturing defects, alongside a 30-day return window.
Describe the noise and when it happens and we’ll help confirm whether it’s the rotor before you order.
