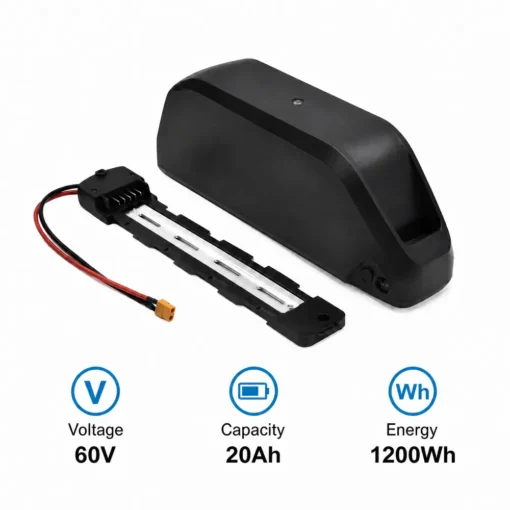

Ebike Battery 60V 20Ah — Frame-Integrated Downtube Battery

The 60V Sweet Spot — Power, Range and Efficiency in One Package

This battery occupies a uniquely balanced position in the All4eBikes battery range. At 60V nominal voltage, it sits between the 52V systems favoured for efficiency-focused builds and the 72V packs preferred for maximum top-end performance — delivering a combination of strong motor output, excellent energy density and a practical range that makes it one of the most well-rounded battery choices for mid-to-high-power electric bike conversions.

Paired with 2000W to 3000W motor systems, this battery produces noticeably stronger acceleration and higher sustained speed than a 48V or 52V pack of equivalent capacity, while remaining more accessible in cost and more widely compatible with controllers and motor systems than a full 72V platform.

The 1200Wh total energy figure — derived from 60V multiplied by 20Ah — gives this battery a meaningful real-world range advantage over smaller-capacity packs. At moderate power output on a typical off-road or mixed-terrain build, 1200Wh supports riding ranges that comfortably cover extended sessions, longer commutes and touring distances without range anxiety interrupting the ride.

Downtube Form Factor — Integrated, Balanced and Secure

The defining physical characteristic of this battery is its downtube form factor — a slim, elongated battery case designed to mount along the down tube of the bicycle frame, the large diagonal tube running from the head tube to the bottom bracket. This mounting position offers several important advantages over rear rack, seat post or externally strapped battery placements:

21700 5000mAh Cells — High Energy Density at a Practical Weight

This battery is built around 21700 format 5000mAh lithium cells — the same high-energy-density cell format used in the premium battery packs across the All4eBikes range. The 21700 cell’s larger format compared to the older 18650 standard allows more energy to be stored per cell, which in turn means this battery achieves its 1200Wh total capacity in a physically compact, lightweight case weighing approximately 6.6kg — a well-managed balance of energy and weight for a battery of this specification.

The cycle life specification of 1000 cycles at 80% retained capacity means this battery maintains at least 960Wh of usable energy after 1000 full charge-discharge cycles under normal operating conditions. For a rider completing one full charge cycle per week, this represents roughly 19 years of use before meaningful capacity degradation — a practical durability figure that reflects the quality of the cell chemistry used in this pack.

Discharge Performance — 50A Continuous, 100A Peak

The discharge specification of this battery is well matched to the 2000W–3000W motor systems it is designed to power. The 50A continuous discharge rating ensures stable, unthrottled power delivery to the motor during normal riding — including sustained climbs, heavy acceleration and prolonged high-speed sections where consistent voltage and current delivery are essential for reliable motor performance. The 100A peak discharge rating provides additional headroom for the brief, high-current spikes that occur during maximum acceleration from standstill.

BMS Protection — Safety Built Into Every Charge and Discharge

This battery incorporates an advanced Battery Management System providing full protection across its operating range:

This five-layer protection ensures the battery remains safe under the demanding operating conditions of high-power off-road and performance riding, and extends cell life by preventing the degradation caused by operating cells outside their safe voltage and temperature windows.

Other Voltage Options in the All4eBikes Range

For riders considering other voltage levels, the Triangle eBike Battery 72V 30Ah 100A is the flagship high-power option for 72V builds requiring maximum energy and 100A sustained discharge. The Triangle eBike Battery 52V 30Ah provides excellent range at 52V for mid-power builds. The Ebike Battery 48V 20Ah offers a compact, cost-effective downtube option for 48V motor systems. For the complete selection of downtube battery options across all voltage levels, the full All4eBikes battery range covers 36V through 72V in multiple capacities and form factors.

Warranty and Returns

Every Ebike Battery 60V 20Ah purchased from All4eBikes is covered by a 12-month warranty against manufacturing defects, alongside a 30-day return window for complete purchase confidence.
