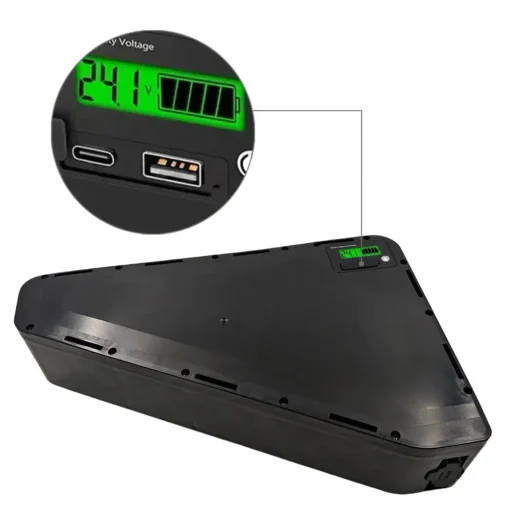

Triangle Ebike Battery 52V 30Ah — 1560Wh LG5000mAh Frame-Integrated Battery Pack

1560Wh — Maximum Energy at 52V Triangle Format

At 30Ah and 52V nominal, this battery stores 1560Wh of usable energy — the highest capacity available in the 52V triangle range, exceeding the 1456Wh of the 28Ah format by 104Wh and delivering 50% more energy than the 20Ah format at the same 52V platform and cell specification. For a 52V motor system consuming 15–20Wh per kilometre under mixed conditions, 1560Wh delivers an estimated range of 78–104km per charge from a mid drive system in the 250W–350W range. For high-output motor systems in the 750W–2000W range, the 1560Wh capacity covers full-day extended riding, cargo delivery operations and demanding off-road sessions on a single charge without range anxiety at any point in the route.

The step from the Triangle Ebike Battery 52V 28Ah at 1456Wh to the 30Ah at 1560Wh represents the same LG5000mAh cell chemistry and 50A discharge specification with 104Wh of additional stored energy — the right choice for riders who consistently approach the top of their 28Ah pack’s capacity and want genuine reserve for the unexpected.

Grade A 21700 LG5000mAh — The Premium Cell Specification

This battery steps up from the LG4800mAh cells in the 28Ah format to the higher-capacity Grade A 21700 LG5000mAh cells — the same premium LG cell specification used in the top-tier 48V triangle packs. LG 21700 5000mAh cells represent the highest energy density available in commercial cylindrical lithium-ion production — 5000mAh per cell at 21700 format enables 1560Wh capacity in the triangle footprint without compromising on BMS management or cell consistency.

Grade A selection ensures every cell in this battery pack meets the tightest internal resistance tolerances — even charge distribution, uniform ageing, and consistent output across every cell in the series string throughout the pack’s service life. The cycle life specification confirms this cell quality: 800–1000+ cycles before the pack degrades to 80% of its original 1560Wh capacity.

50A Discharge — Correct Specification for 52V High-Power Builds

The 50A continuous discharge current of this battery is the discharge rating that correctly matches its 2000W motor compatibility at 52V operating voltage. At 52V nominal, 50A continuous discharge delivers up to 2600W of sustained power draw — 600W of headroom above the 2000W motor ceiling, ensuring the BMS protection threshold stays well clear of the normal current demands of sustained hard riding. At 52V, the elevated voltage increases peak current demand at the battery terminals compared to equivalent 48V operation at the same motor power — the 50A BMS rating accommodates this physics correctly, where a 40A or 45A rated battery pack would be operating closer to its limits under identical 52V motor conditions.

52V Platform — 58.8V Peak to Low-Voltage Cut-Off

This battery charges to a full cut-off voltage of 58.8V — delivering its peak voltage at the start of every ride for maximum motor output and sharpest throttle response. The 58.8V full charge is significantly higher than the 54.6V of a fully charged 48V pack, producing noticeably stronger initial acceleration and higher peak power from any 48V or 52V compatible motor system during the first portion of every ride. As the battery discharges through its operating range, voltage declines gradually while the BMS enforces the low-voltage cut-off to protect the LG5000mAh cells from deep discharge damage.

A full charge from empty takes approximately 7 hours — suited to overnight charging routines that deliver 1560Wh of capacity every morning.

BMS — Four-Layer Active Cell Protection

Active cell balancing during charging ensures every LG5000mAh cell in the series string reaches the same state of charge — the mechanism that maintains capacity consistency across 800–1000+ cycles and prevents early-ageing divergence. The BMS operates continuously and transparently, requiring no user maintenance.

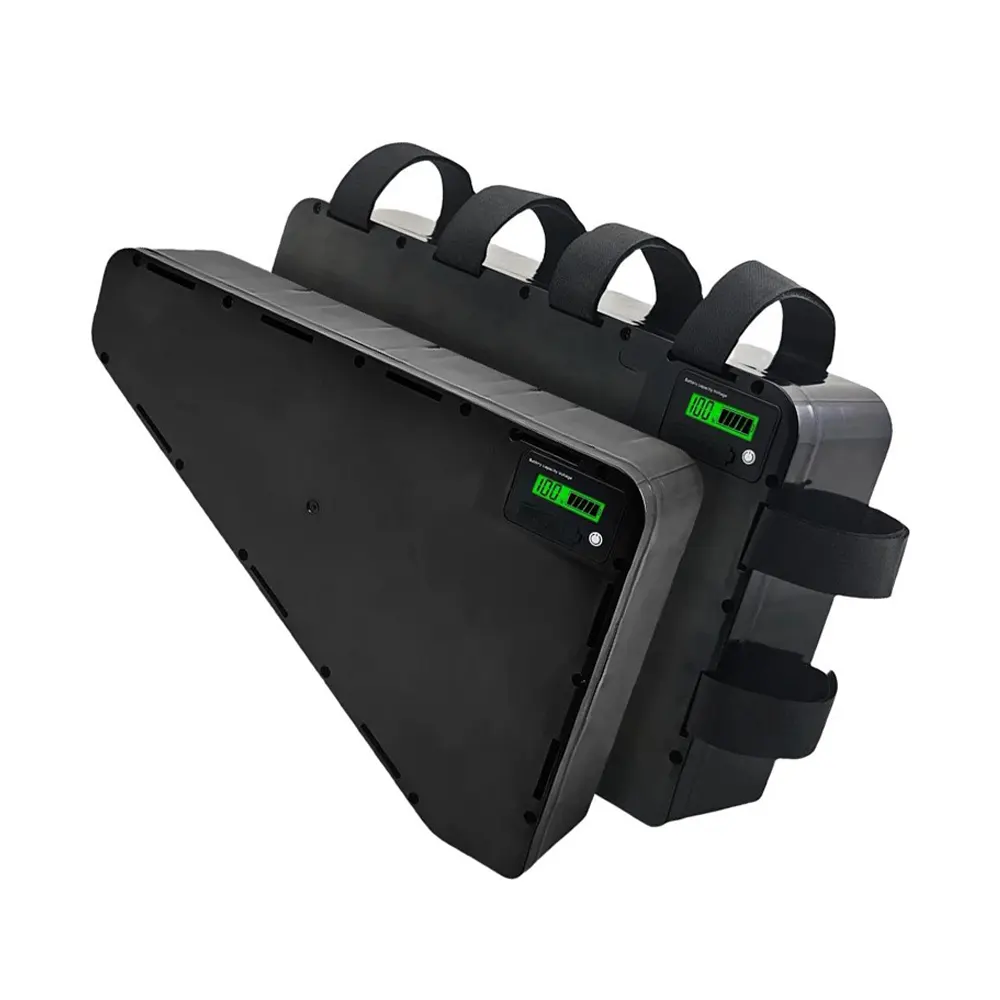

Triangle Format — Frame Integration, Weight, Aesthetics

This battery mounts inside the main bicycle frame triangle using integrated straps and brackets — placing 1560Wh of stored energy at the geometric centre of the bicycle, between both wheels, as low in the frame as the triangle geometry allows. This mounting position delivers balanced weight distribution and a low centre of gravity that no downtube or rack-mounted battery can replicate at equivalent capacity. The triangle format also fills the empty void inside the frame that most bicycle designs naturally have — making the converted bicycle look designed and factory-built rather than assembled from aftermarket components.

The durable, heat-resistant outer casing protects the Grade A LG cells and BMS electronics from vibration, mechanical impact and weather exposure during normal outdoor riding. The XT60 connector is rated for the 50A continuous current demands of this battery pack, delivering reliable, low-resistance current flow without contact degradation. No drilling, no welding, no permanent frame modification.

Warranty and Returns

Every Triangle Ebike Battery 52V 30Ah purchased from All4eBikes is covered by a 12-month warranty against manufacturing defects, alongside a 30-day return window for complete purchase confidence. For the complete battery range across all voltages and formats, visit the Batteries category page.
