Ebike Battery 48V 20Ah – 960Wh Grade A 21700 Cell Battery Pack for Electric Bike

The 48V battery pack that serious builds are made of. The Ebike Battery 48V 20Ah is a high-specification, Grade A 21700 cell lithium-ion downtube battery delivering 960Wh of stored energy for 48V and 52V motor systems rated from 250W up to 1500W. Built on 21700 Grade A 4800mAh cells with a 40A continuous discharge rating, 100A peak output, and a cycle life of ≥80% capacity after 800 full cycles, this is a 48V ebike battery engineered for long-term performance in demanding high-power conversion builds. The 48V battery pack that doesn’t compromise on cell quality, doesn’t under-specify the BMS, and doesn’t limit your motor options — this is the 48V 20Ah format for builders who want the full specification.

Why the Ebike Battery 48V 20Ah Stands Apart

Grade A 21700 Cells — Premium Energy Density

The cell specification inside this 48V lithium battery is the most important differentiator between this pack and the compact-format 48V batteries in the range. Built on Grade A 21700 4800mAh cells, this pack uses the larger 21700 cylindrical cell format rather than the standard 18650. The 21700 cell delivers significantly higher energy density per unit — more capacity per cell volume, which translates directly into a higher overall pack capacity within a manageable physical footprint. At 21700 Grade A specification, every cell in this pack is manufactured to the tightest internal resistance tolerances, ensuring balanced charge distribution across the entire series string, consistent output under load, and uniform ageing across all cells over the pack’s service life.

The cycle life specification reflects this quality — ≥80% capacity retention after 800 full charge cycles. Under daily use with one full charge cycle per day, that represents over two years before the pack drops below 80% of its original 960Wh capacity. Typical partial-charge patterns extend practical service life well beyond that benchmark, making this a genuinely long-term investment in your conversion platform.

960Wh — High Capacity, Dual Voltage Compatibility

At 20Ah and 48V nominal, the 48V battery pack stores 960Wh of usable energy — enough for an estimated 48–64km range from a 250W–350W mid drive system under mixed conditions. Higher-output motor systems in the 750W–1500W range draw more energy per kilometre but still deliver meaningful real-world range that covers commuting and recreational riding distances comfortably on a single charge. The dual compatibility with both 48V and 52V motor systems is a key specification advantage — this battery is rated for motors up to 1500W across both voltage platforms, giving it broader motor compatibility than the compact-format 48V packs rated to 1000W. Running this 48V ebike battery with a 52V-compatible motor system uses the full voltage available from the 54.6V charge cut-off, sharpening acceleration and increasing peak power at the top of the charge curve.

Technical Specifications

Full Specification Breakdown

• Compatible motor power: 52V or 48V, 250W–1500W (max 1500W)
• Nominal voltage: 48V
• Rated capacity: 20Ah
• Energy: 960Wh
• Cell type: Grade A 21700 4800mAh lithium-ion
• Cycle life: ≥80% capacity after 800 cycles
• Battery net weight: ~6.2kg
• Battery dimensions: 368 × 123mm
• Standard charge current: 3A
• Max continuous charge current: 5A
• Max continuous discharge current: 40A / 40A
• Peak discharge current: 100A / 100A
• Charge cut-off voltage: 54.6V
• Discharge cut-off voltage: 37.4V
• Format: Downtube

40A Continuous, 100A Peak — Built for 1500W Motor Systems

The discharge specification of this 48V battery is what makes it the correct energy source for high-output 48V motor systems up to 1500W. At 40A continuous discharge current, the pack sustains up to 1920W of continuous power draw at 48V nominal — well above the 1500W maximum motor rating, providing substantial headroom against BMS protection thresholds under sustained hard riding conditions including steep climbs, heavy loads, and high-speed flat riding. The 100A peak discharge current handles the high-amplitude current spikes during hard acceleration from a standstill without voltage sag or protective shutdown — a specification that lower-quality 48V packs with 30A BMS ratings simply cannot match.

This discharge capability directly makes this 48V lithium battery the appropriate pairing for high-power hub motor and mid drive systems. For hub motor builds in the 1500W range, the E-Bike Conversion Kit 1500W BLACK is a directly compatible motor system that draws within the 40A continuous discharge rating of this pack. For the full range of 48V and 52V compatible conversion kits, visit the Conversion Kit category page.

Voltage Window — 54.6V Full Charge to 37.4V Cut-Off

The 48V ebike battery operates between a full charge voltage of 54.6V and a discharge cut-off of 37.4V. At full charge the pack delivers its peak voltage — producing maximum motor performance and sharpest throttle response. As the pack discharges through its operating range, voltage declines gradually within the 17.2V window between these two points, delivering the full 960Wh of energy across a range that any standard 48V motor controller manages natively. The BMS enforces both the 54.6V upper limit and the 37.4V lower limit automatically — no user intervention required, no risk of overcharge or over-discharge damage under normal use.

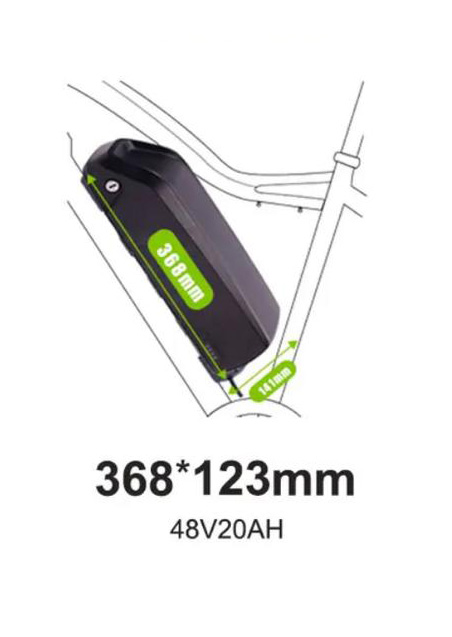

Compact Downtube Format — 368 × 123mm

Frame Compatibility and Weight Distribution

The 48V battery pack is built in a standard downtube format measuring 368 × 123mm and weighing approximately 6.2kg. The downtube mounting position places this weight at the lowest, most central point of the bicycle frame — optimising weight distribution for balanced handling and a low centre of gravity that keeps the converted bicycle riding naturally. At 6.2kg, the pack is heavier than the compact 13Ah and 15Ah formats — a direct consequence of the higher cell count needed for 960Wh capacity in 21700 format. Verify frame clearance against the 368 × 123mm dimensions before ordering, particularly on smaller frame sizes where the wider 123mm profile may conflict with chainstay or bottom bracket clearance.

For builds where the Hailong case format is preferred with identical capacity, the Ebike Battery 48V 20Ah Hailong is the direct alternative with the same 20Ah capacity in Hailong-specific case geometry. For the complete battery range across all voltages and capacities, visit the Batteries category page.

Charging — 3A Standard, 5A Fast

Full Charge in 4–7 Hours

The 48V lithium battery charges at a standard rate of 3A, delivering a full charge from empty in approximately 6–7 hours — ideal for overnight charging routines. For faster turnaround, the pack supports a maximum continuous charge current of 5A, reducing full charge time to approximately 4 hours. The BMS terminates charging automatically at the 54.6V cut-off regardless of charger output, ensuring no risk of overcharge at either supported charge rate. The standard 3A charge rate is the gentler option for long-term cell health — consistent overnight charging at 3A is the usage pattern that helps this pack achieve and maintain its 800-cycle longevity specification.

BMS Protection — Active Management on Every Cycle

Comprehensive Cell Protection Built In

The integrated BMS in this 48V battery provides active protection against every common lithium battery failure mode. Overcharge protection terminates charging at 54.6V. Over-discharge protection enforces the 37.4V cut-off. Overcurrent protection limits discharge current under fault conditions. Short-circuit protection provides immediate shutdown in the event of a connector or wiring failure. Cell balancing during charging ensures every cell in the series string reaches the same state of charge — the active management mechanism that maintains capacity consistency across 800 cycles and prevents early-ageing divergence between individual cells. This 48V ebike battery does not require user maintenance of any kind — the BMS handles all cell management automatically.

Specifications Summary

The 48V battery pack for builders who want the full specification — Grade A 21700 cells, 960Wh of stored energy, 40A continuous discharge, 100A peak output, 800-cycle longevity, and dual 48V/52V motor compatibility up to 1500W. The Ebike Battery 48V 20Ah is the complete, properly engineered 48V lithium battery for high-performance e-bike builds that demand reliable, long-range energy storage from a premium cell pack — the right 48V ebike battery for the right build.
